Regulators

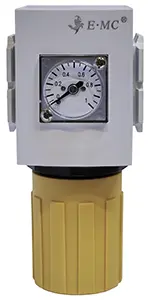

Regulators are used to maintain a steady outlet pressure unaffected by fluctuations. The aluminum die cast design has a non-raising “Press to Lock” adjusting knob for locking at any set pressure.
- Diaphragm operated, relieving type mechanism with pressure compensated by balance poppet.
- Can be installed in any position.
- Red ring provides visual check for regulator in the unlock position
- Includes panel nut for mounting.
- Includes 2 Gauge Ports: 1/8” NPT (Mini, Intermediate and Standard), ¼” NPT (Large).
- Maximum Pressure: 200 psig (15 bar)
- Ambient Temperature: 32°F – 140°F
Our FRL Catalog and Price List are available on-line. Request a quote for the relieving regulators you need online today, or contact Polyconn for further information.
If the Qty shows "In Stock" please note that the availability is subject to change dependent upon quantity ordered.
