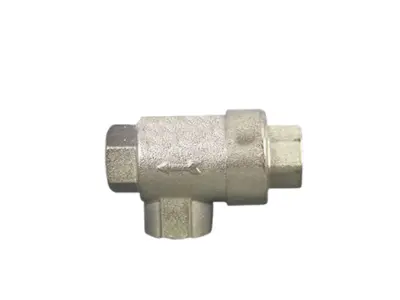

Quick Exhaust Valves

Polyconn quick exhaust valves are designed for the rapid purge of air or exhaust from a pneumatic system. They are most commonly used at cylinder ports to significantly increase cylinder speed, particularly in return cycles. Our quick exhaust valves can also be used for valving or other pneumatic applications where a quick alleviation of air pressure or exhaust would be advantageous.

All of Polyconn’s quick exhaust valves are manufactured from forged brass, and nickel plated for superior corrosion resistance. They include nylon or NBR 70 seal gaskets. Our quick exhaust valves are available in sizes from 1/8” to 1” NPT F, to fit nearly any size cylinder or implement. They have a working pressure range from 0 to 150 PSI. Their operational temperature range is 0°F to 160°F.

Our quick exhaust valves are the ideal way to boost the speed of your pneumatic system. Request a quote today, or contact Polyconn for more information.



Industrial Quick Exhaust Valves

Polyconn’s pneumatic Quick Exhaust valves are an ideal solution for Increasing the speed of your pneumatic system. They can rapidly exhaust the air from your system allowing an increase in the speed of your cylinder. The lower the back pressure to your cylinder thereby allowing you to reduce the pressure in the inlet side saving valuable amounts of compressed air. They can also allow you to reduce the size of the directional valve as you don’t need to force all the return air back thru it allowing you to use a smaller valve.

Our Quick exhaust valves are commonly used in:
  • Pneumatic cylinders
  • Pneumatic Brake release systems
  • Small pneumatic press
  • Air & inert gas valves
  • Pilot operated valve dumps
Find the Quick Exhaust Valve you need today, or contact Polyconn for more information.
